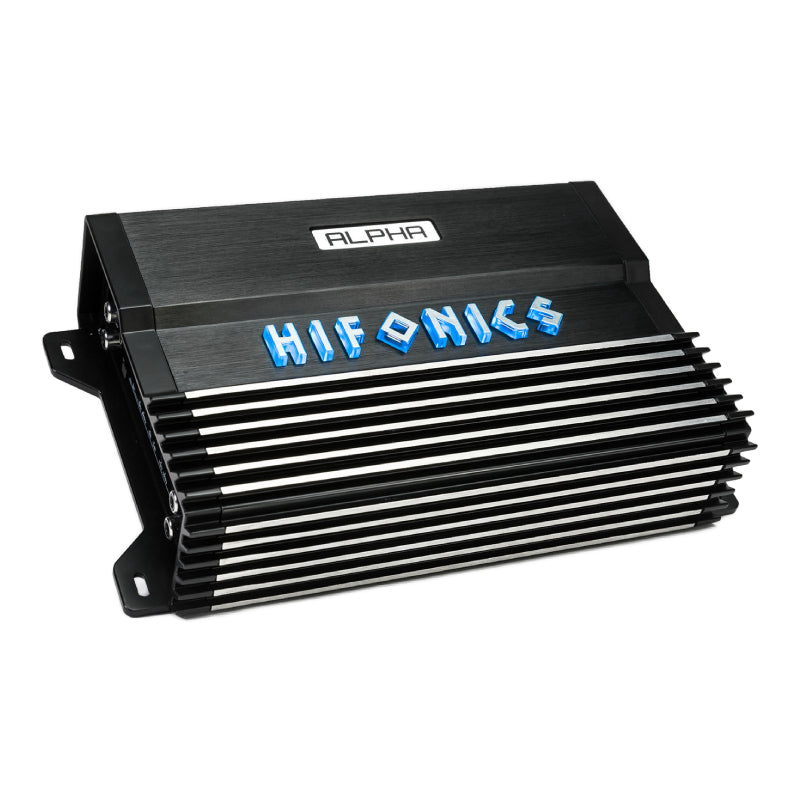

Hifonics A800.4D ALPHA Series 4-Channel 800W Max Class-D Full Range Car Amplifier

Compact ALPHA Series 4-channel car amplifier delivering 800 watts max with Full Range Super D-Class technology. Features versatile crossovers, bass EQ and variable input voltage adjustment.

Features

• Full Range Super D-Class amplifier topology
• Low-noise preamplifier circuit with nickel-plated RCA inputs
• 4-channel or bridged 2-channel operation
• Ultra-Fi MOSFET output devices
• Heavy-duty aluminum heat sink
• Variable bass boost 0-12dB @ 45Hz
• Auto turn-on (signal sense) and LED system protection
• Surface Mount Technology (SMT) construction
• 300KHz high-speed pulsing

Specifications

• Max power: 800W
• Channels: 4
• Class: D (Full Range Super D-Class)
• Power @ 4 ohms: 4 x 100W
• Power @ 2 ohms: 4 x 200W
• Bridged @ 4 ohms: 2 x 400W
• Frequency response: 10Hz-45kHz
• THD: <0.05%
• S/N ratio: >85dB
• Bass boost: 0-12dB @ 45Hz
• Fuse rating: 30A
• Heatsink dimensions: 8.5" L x 9.25" D x 2.37" H
• Warranty: 2 years
