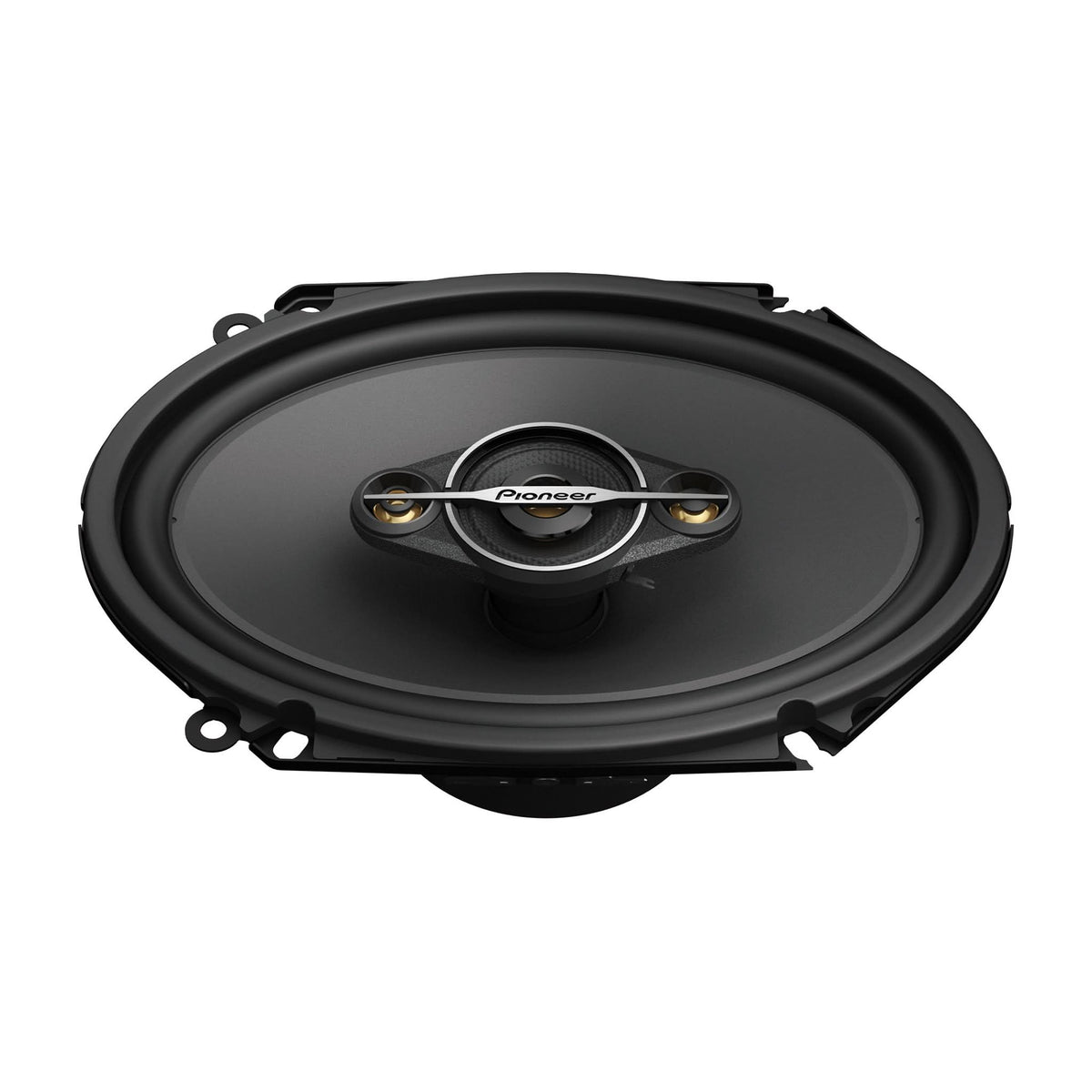

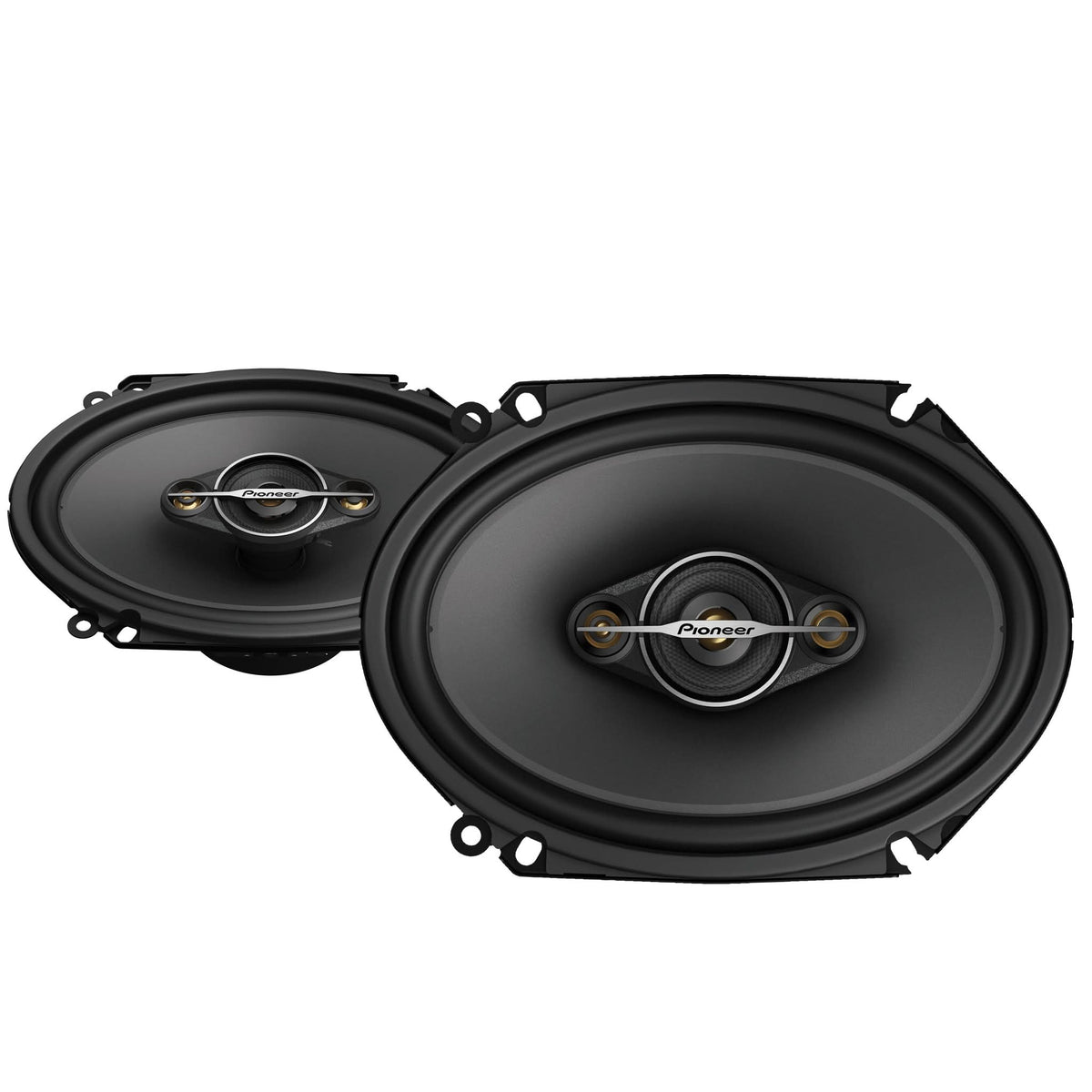

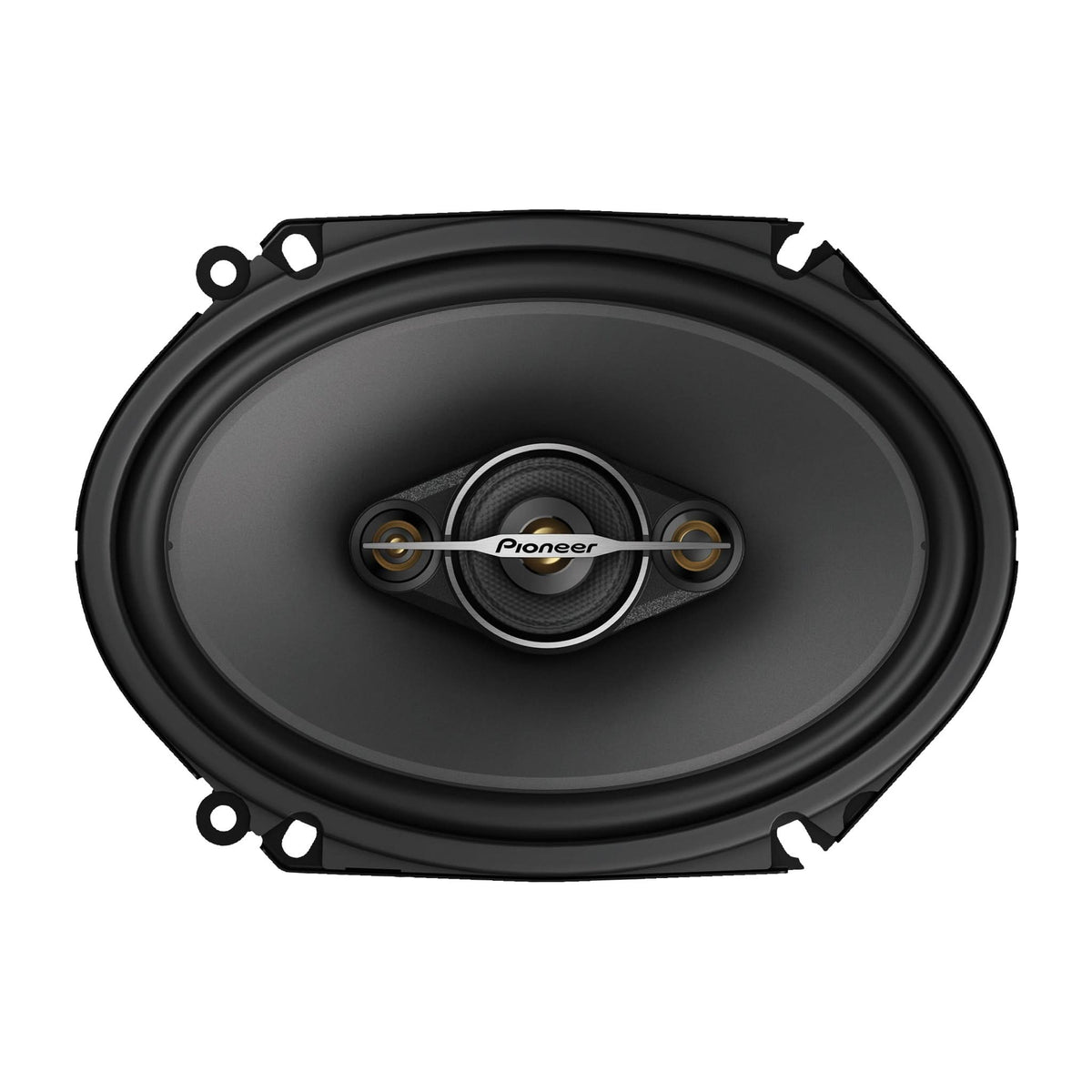

6x8-inch A-Series 4-way coaxial car speakers with a carbon and mica reinforced IMPP woofer cone, 1-5/8" midrange, 18mm PET tweeter and 11mm PET super tweeter. Rated 350 W max / 80 W nominal.
Features
350 W max / 80 W nominal power
6"x8" carbon and mica reinforced IMPP cone woofer
1.625" (42mm) cellulose fiber cone midrange
18mm PET hard dome tweeter plus 11mm PET super tweeter
4-way coaxial design
Specifications
Type: 4-way coaxial
Woofer: 6" x 8"
Midrange: 1.63"
Tweeter: 0.71" (18mm) + 0.43" (11mm) super tweeter
Max power: 350 W
Nominal (RMS) power: 80 W
Frequency response: 30 Hz - 32 kHz
Sensitivity: 90 dB (1W/1m)
Impedance: 4 ohms
Mounting depth: 2.5" (63.5mm)
Cut-out: 7.5" x 5.25"
Dimensions: Cut-out 7.5" x 5.25"; mounting depth 2.5" (overall dimensions not published)
