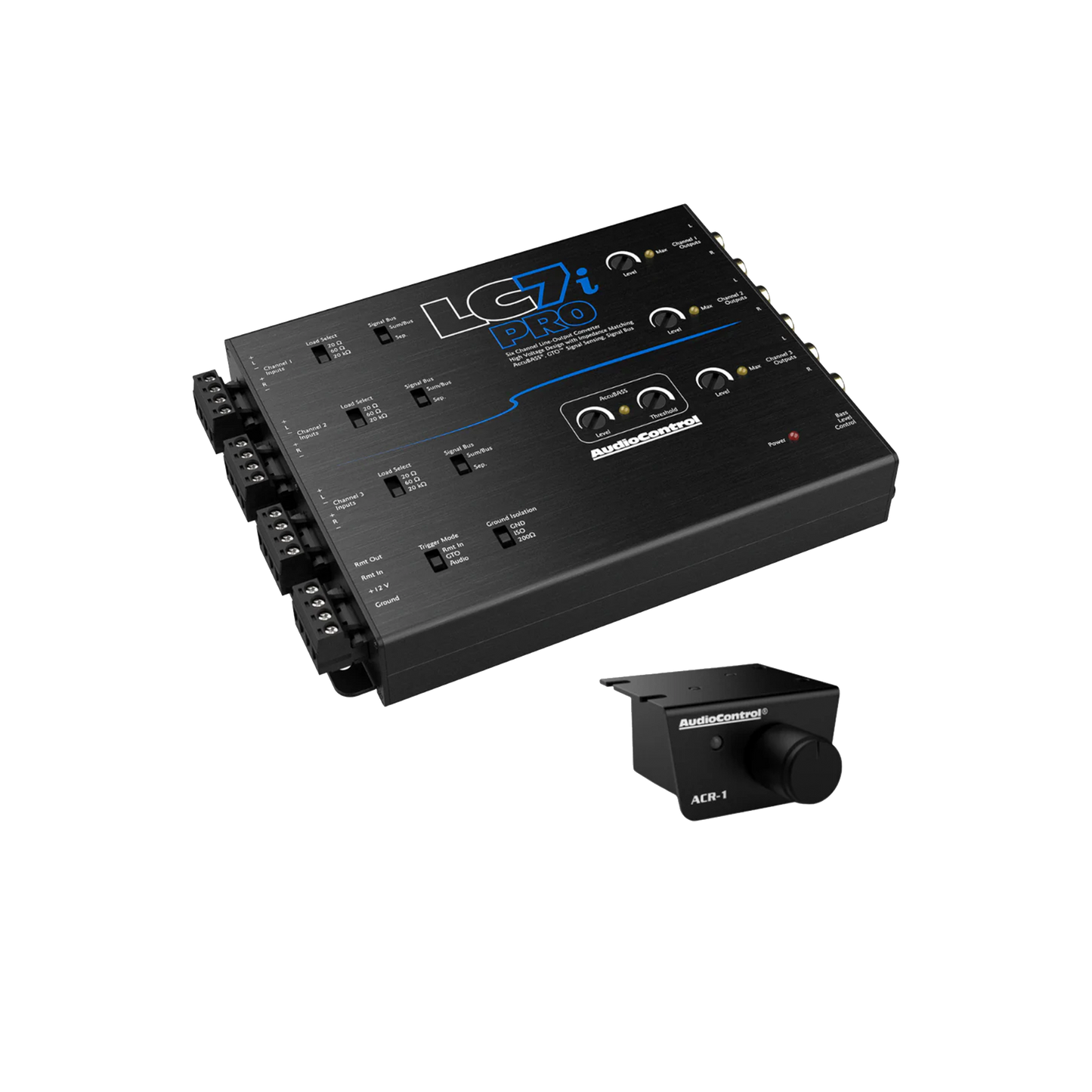

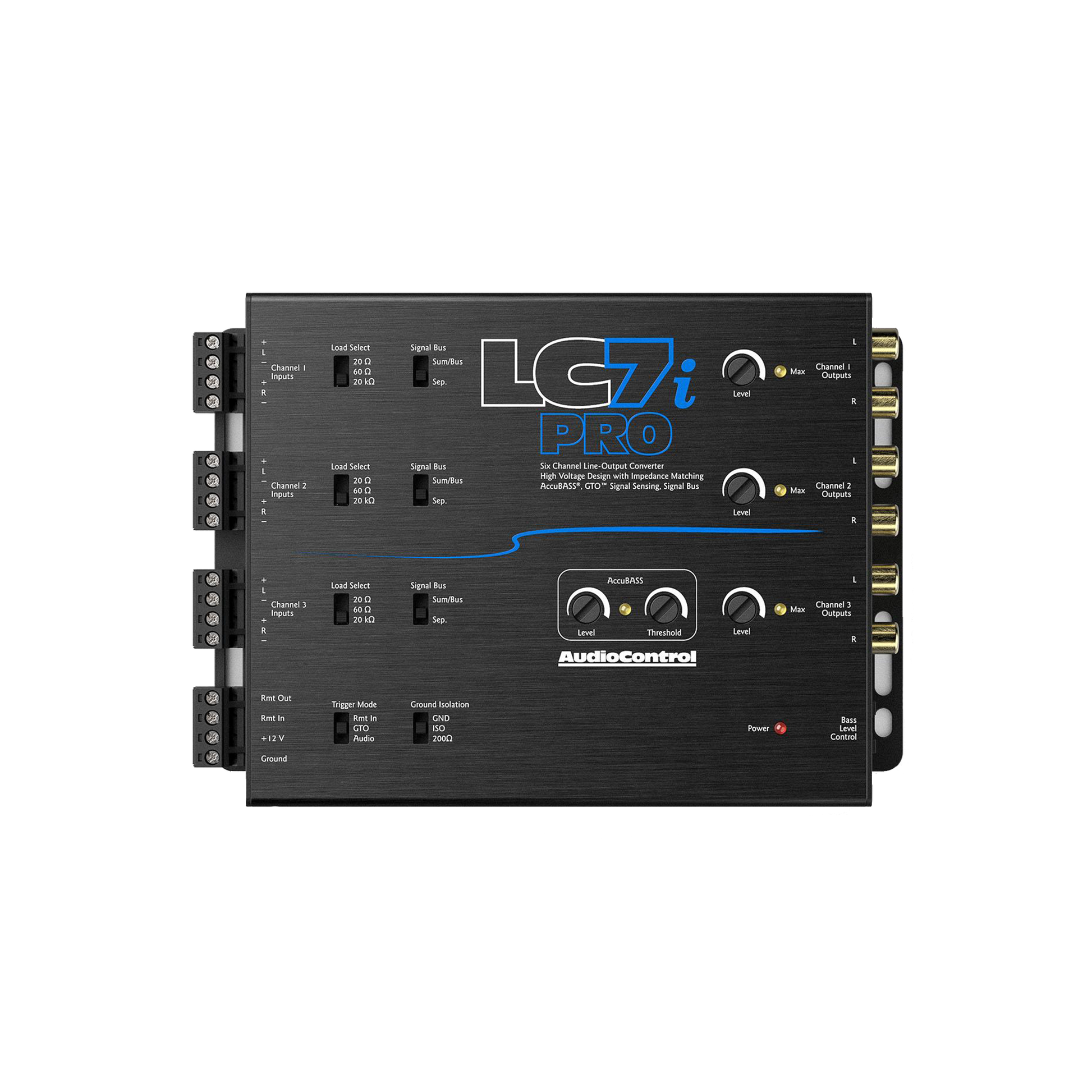

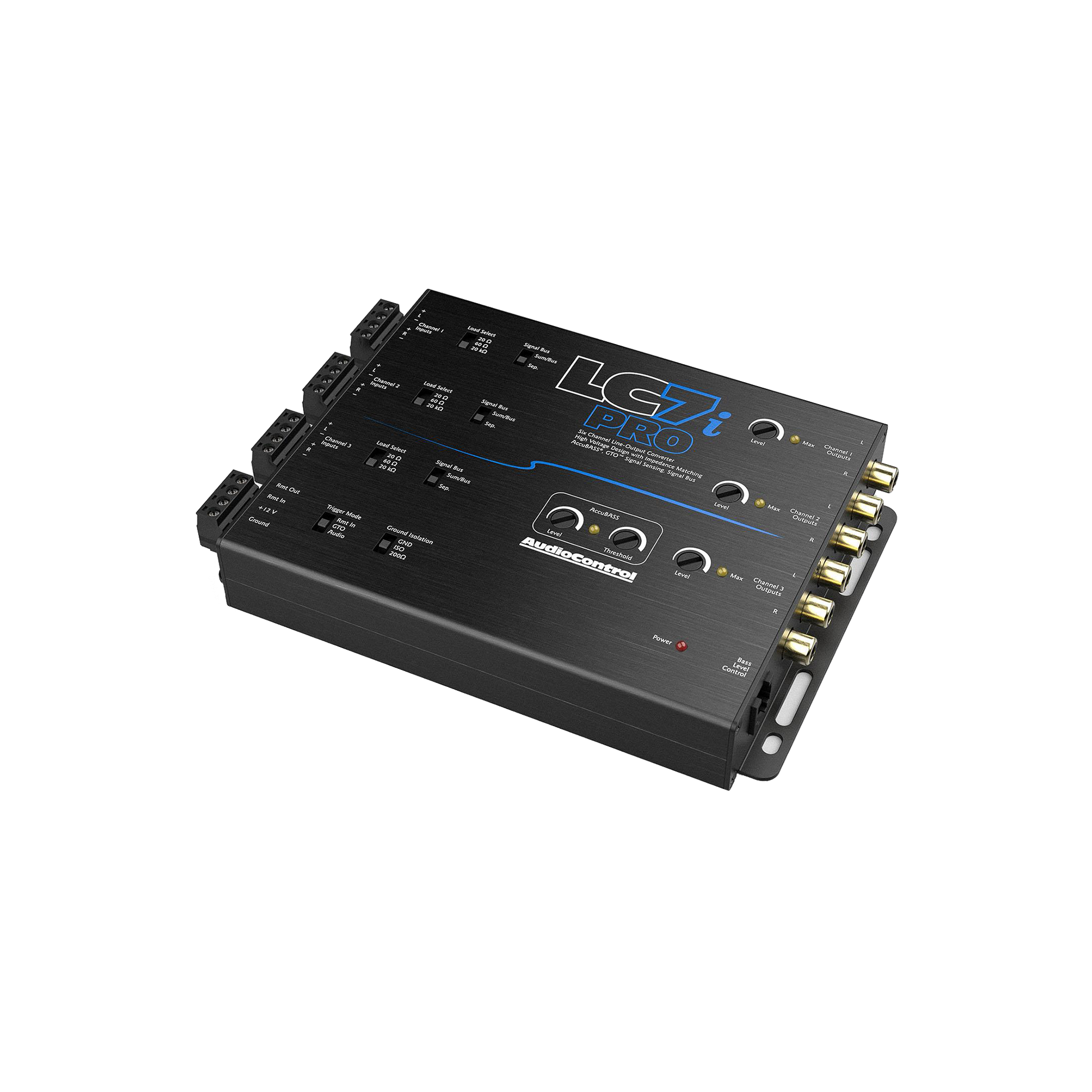

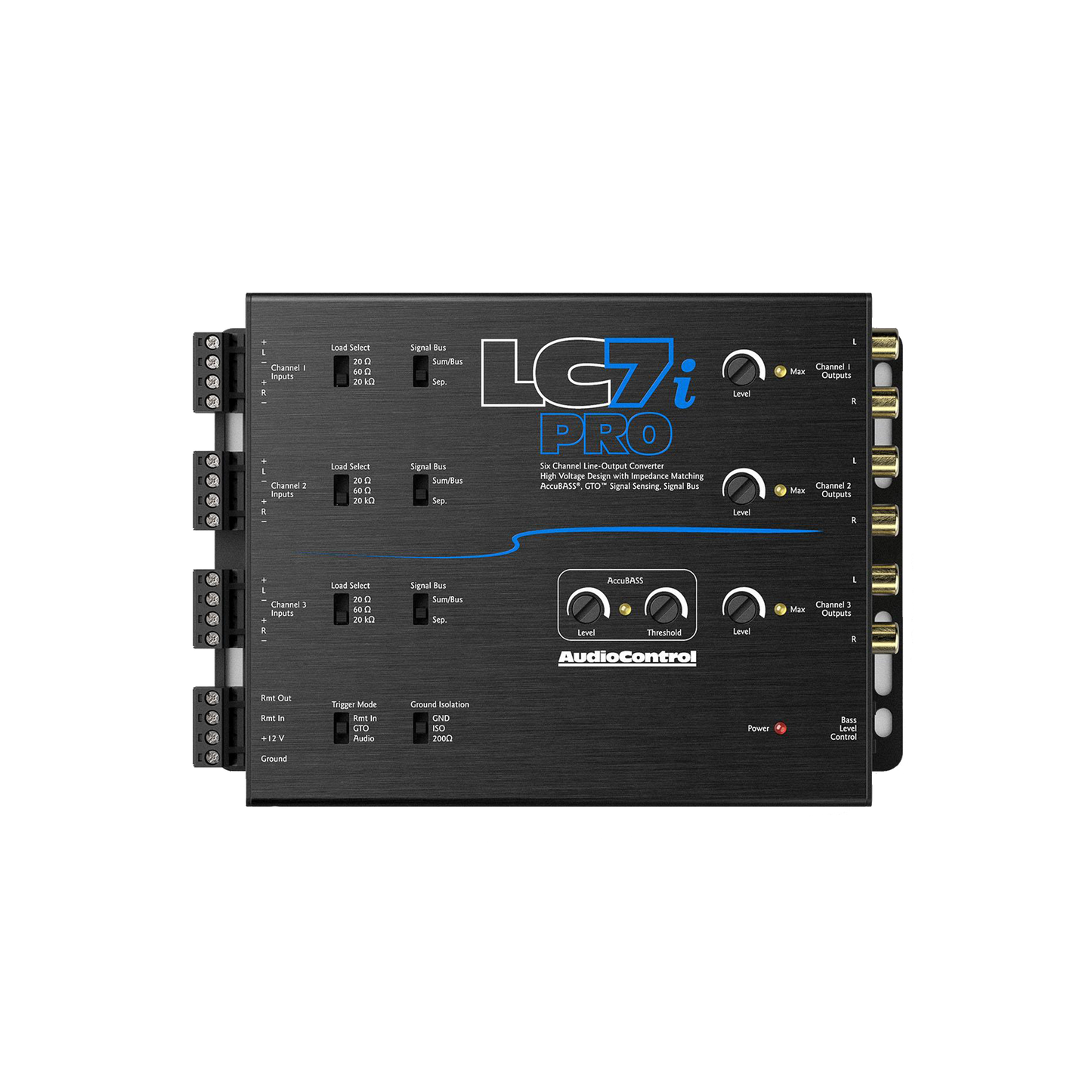

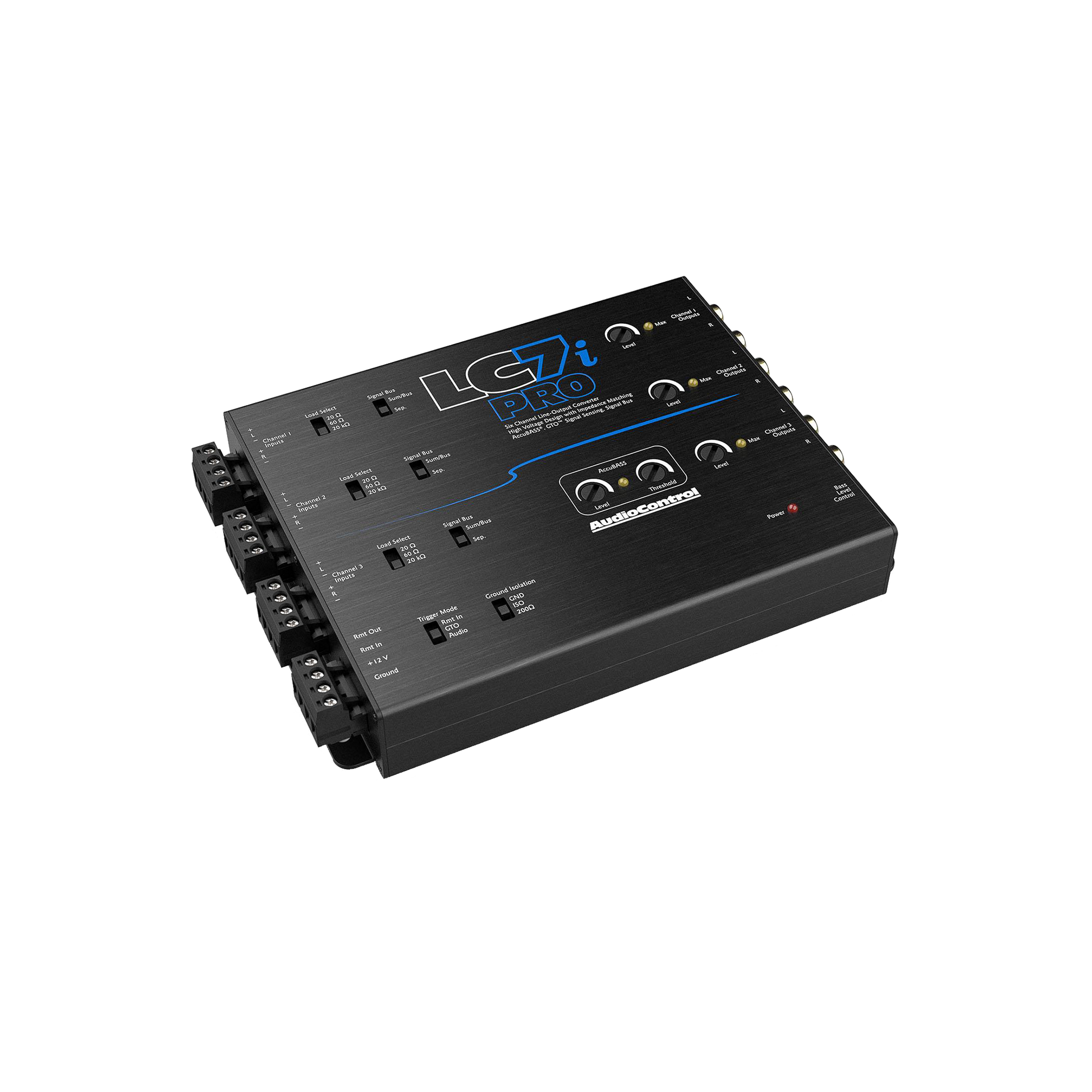

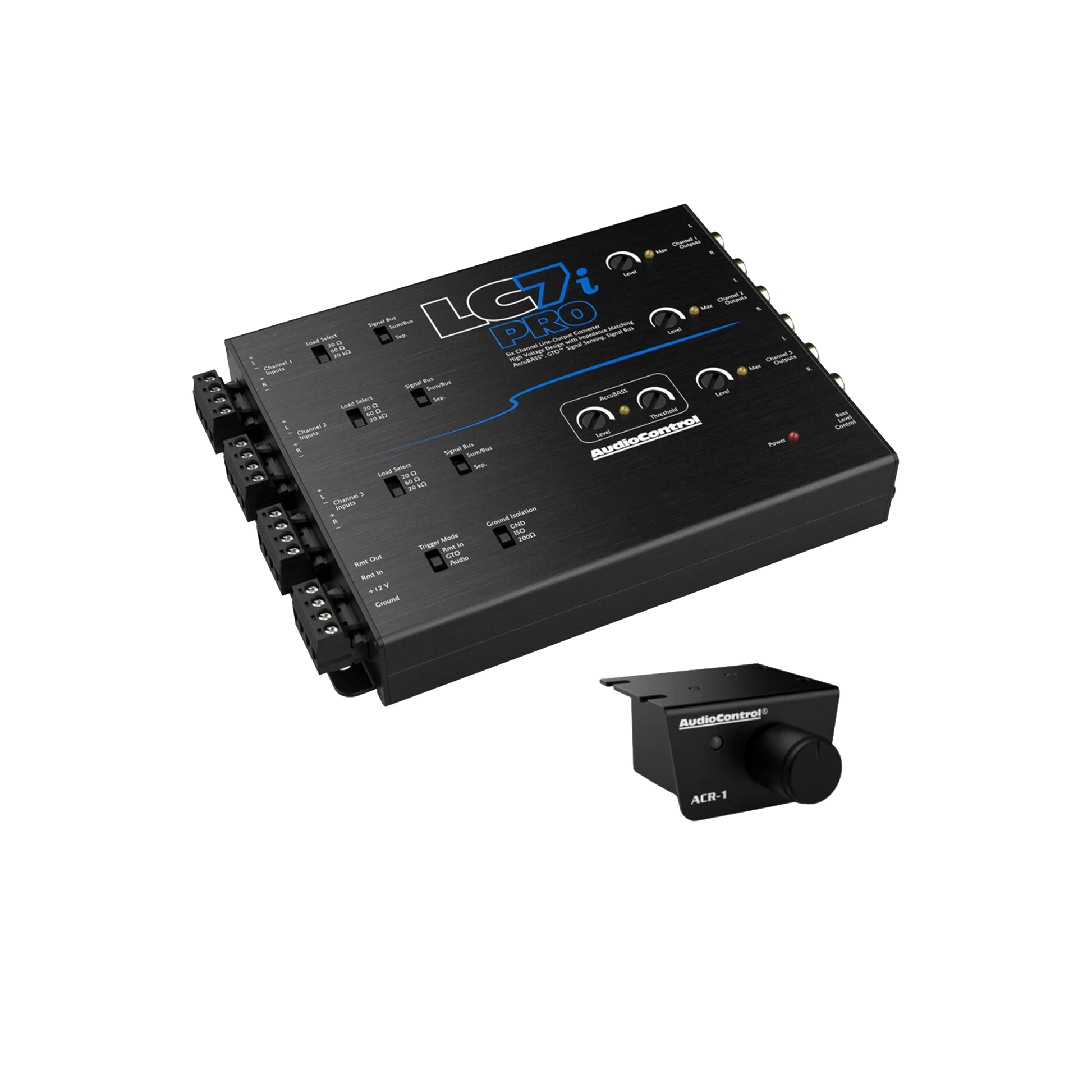

AudioControl's most advanced LOC yet. Six active speaker-level input channels handle up to 40Vrms/400W with selectable impedance matching, AccuBASS® bass restoration, GTO™ signal sensing, and an included ACR-1 dash remote — making OEM integration clean and effortless.
Features
Six active speaker-level input channels (40V max)
AccuBASS® bass roll-off correction
Selectable input impedance: 20Ω, 60Ω, or 20kΩ
GTO™ signal sensing / audio sense / 12V remote
Ground isolation switch
6-channel preamp output (4 main + 2 bass) — 9.5Vrms max

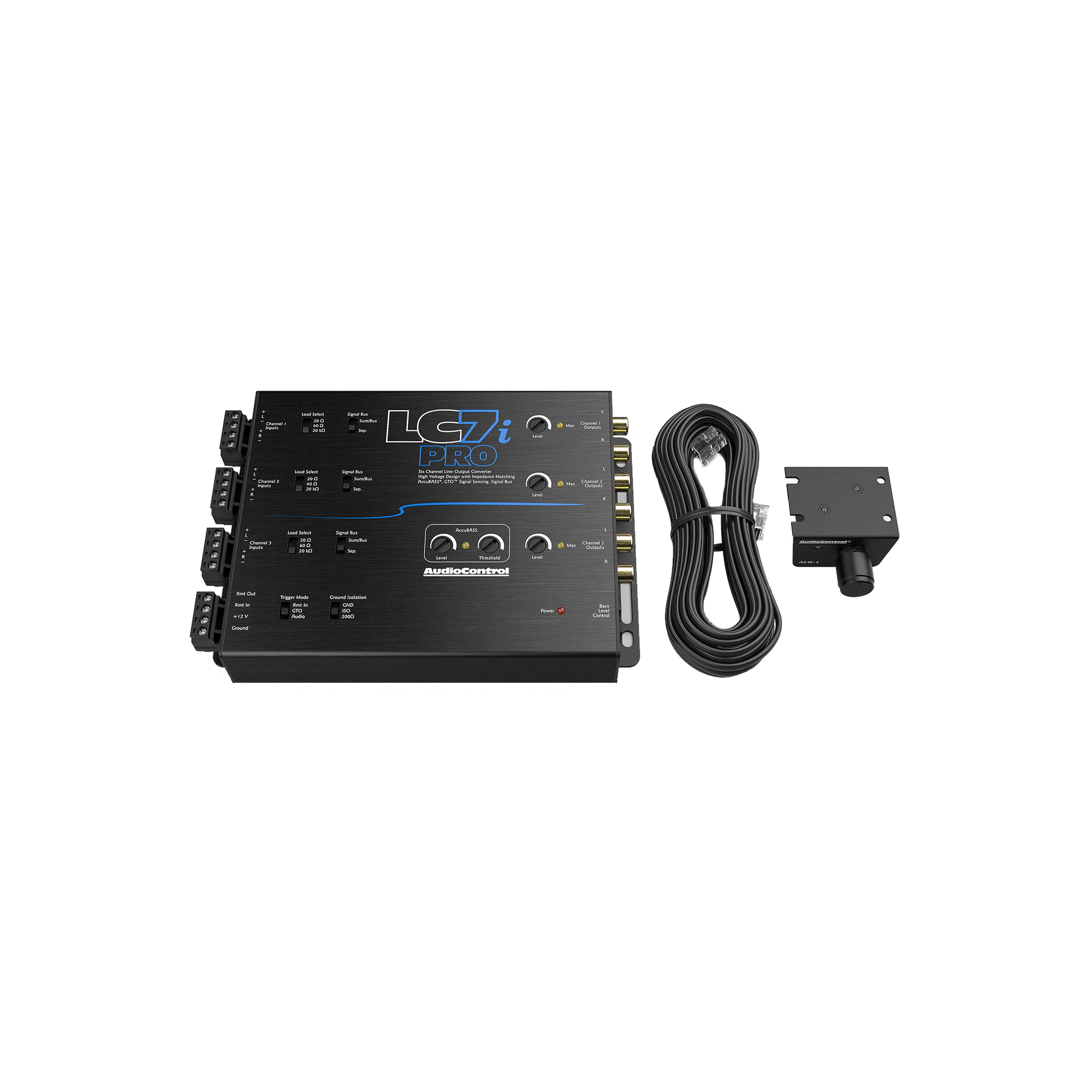

ACR-1 dash remote included
Specifications
Max Input: 40Vrms / 400W (20kΩ setting)
Max Output: 9.5Vrms / 13V peak | Output Gain: ±15 dB
THD: 0.01% | SNR: >124 dB | Freq Response: 20Hz–20kHz
Current Draw: 330 mA | Fuse: 2A | Dimensions: 7″L × 5.1″D × 1.14″H
