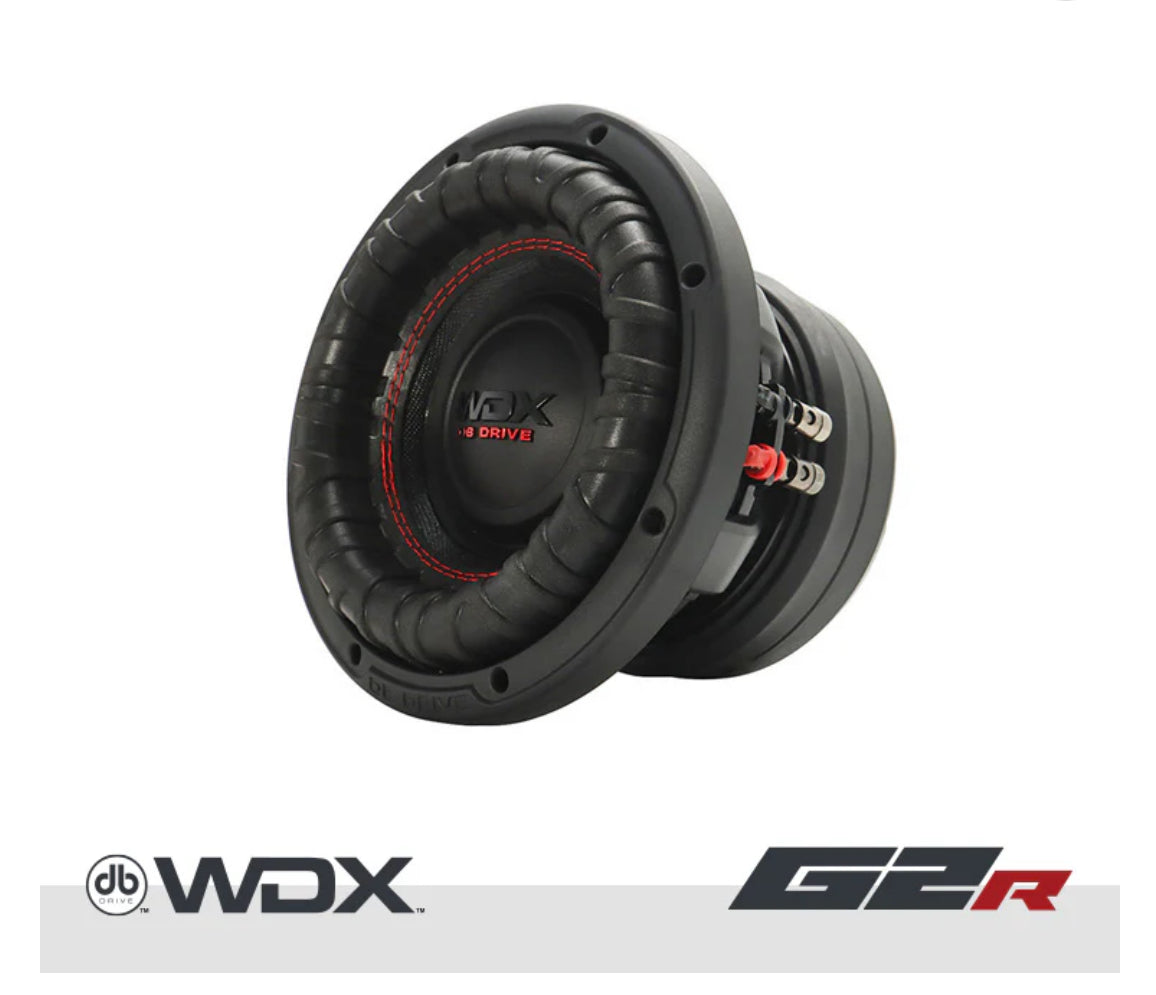

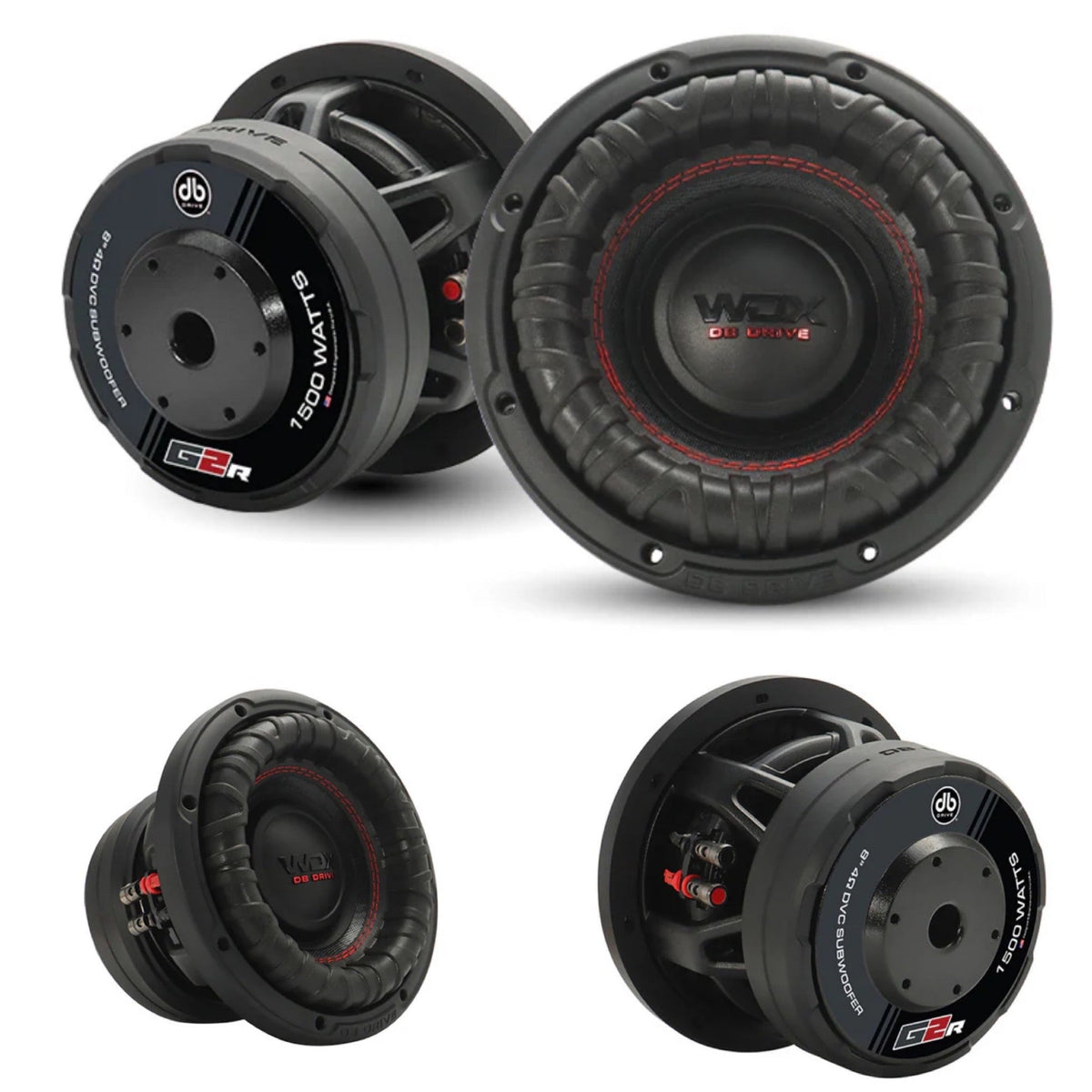

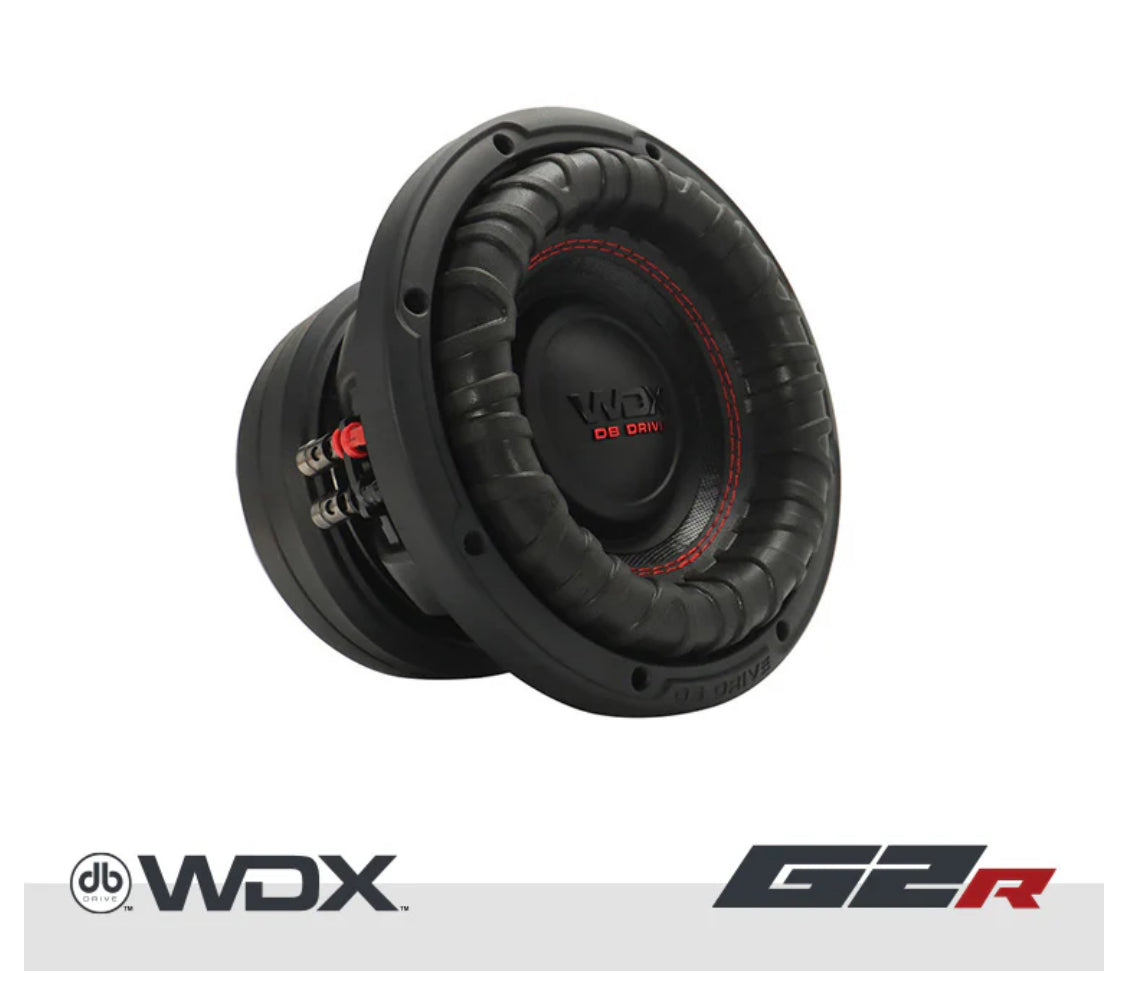

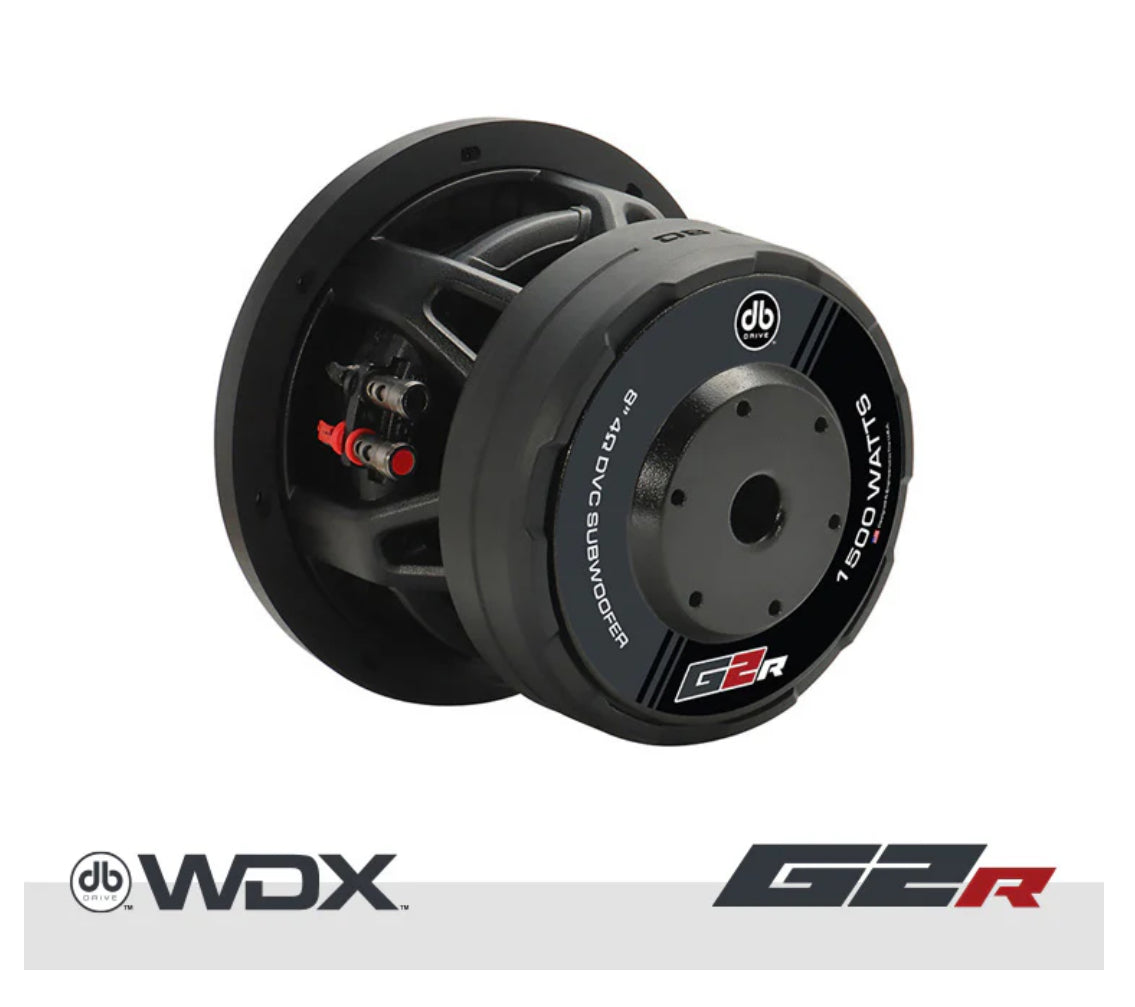

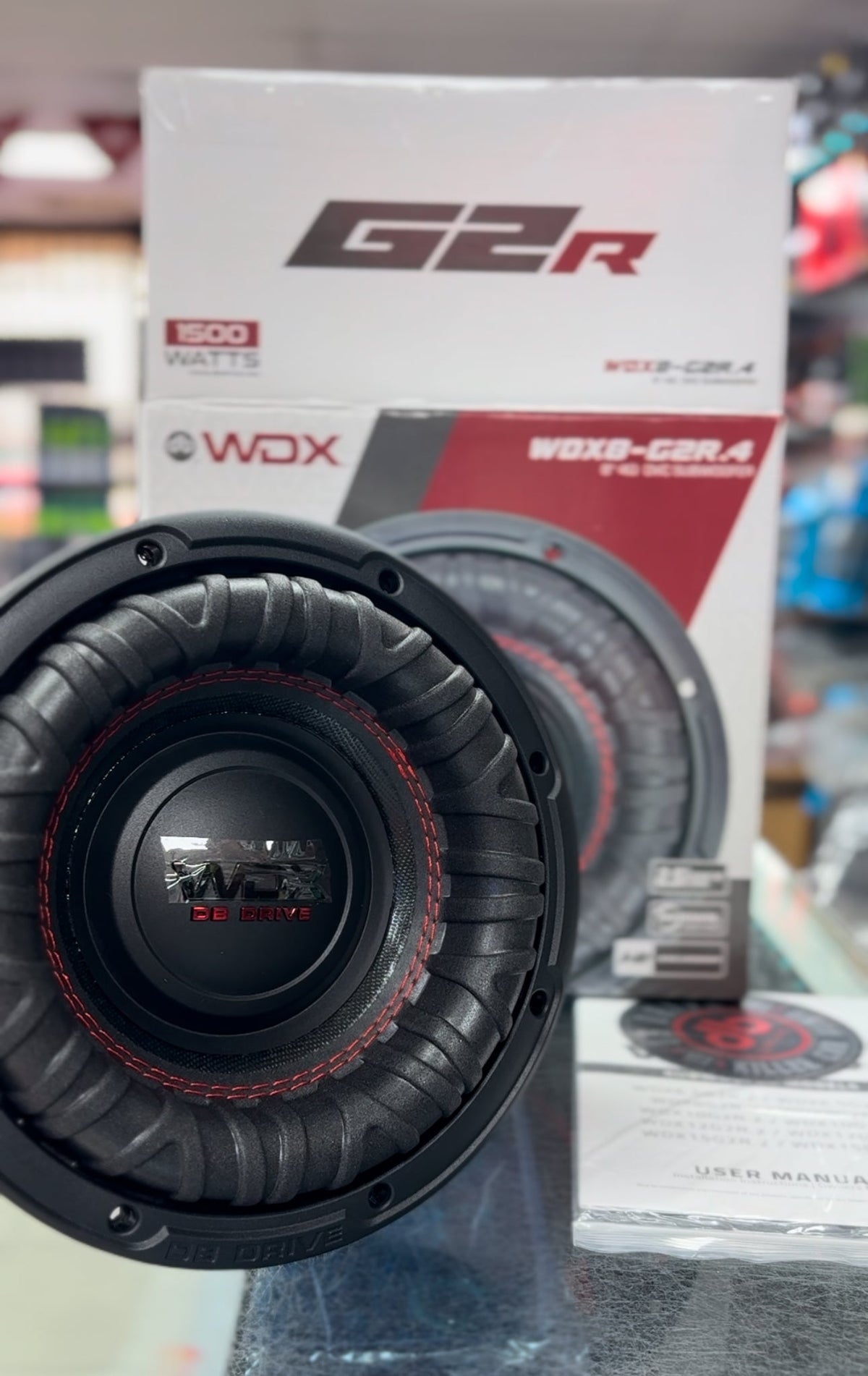

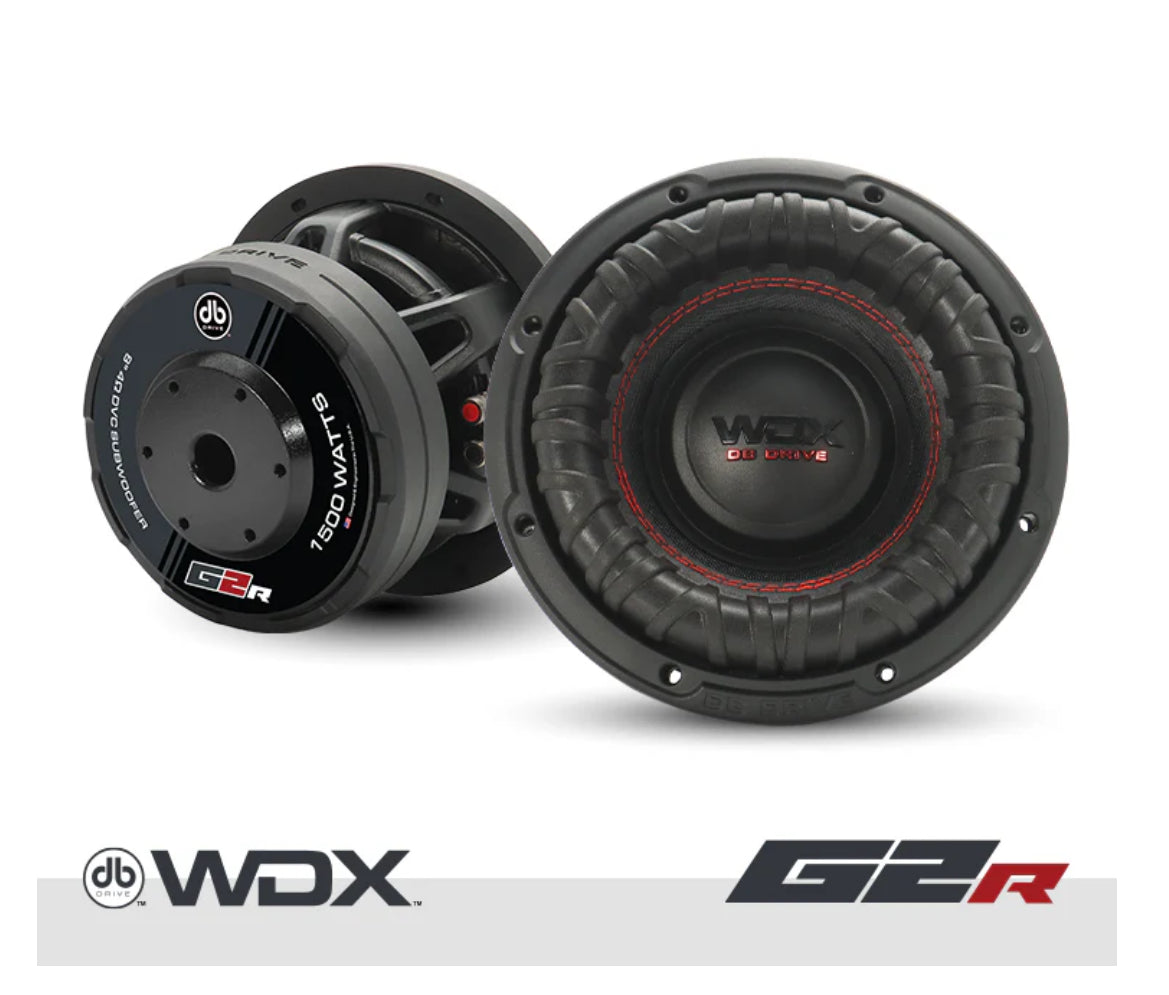

8-inch competition-style subwoofer from DB Drive's WDX G2R series, rated 750W RMS / 1500W max with dual 4-ohm voice coils. Uses a 2.5" aluminum voice coil, non-pressed paper cone and aluminum basket with a Y35 ferrite high-excursion motor.
Features
750W RMS / 1500W max power handling
Dual 4-ohm voice coils
2.5" anodized aluminum voice coil
Non-pressed paper cone, ribbed surround
Aluminum basket with custom mounting gasket
High-excursion motor with Y35 ferrite magnets
Protective magnet cover
Specifications
Size: 8 in
RMS power: 750 W
Peak power: 1500 W
Impedance: dual 4 ohm (DVC)
Sensitivity: 79.3 dB
Fs: 39.48 Hz
Vas: 7.051 L
Mounting depth: 5.55 in (141 mm)
Cut-out diameter: 7.36 in (187.5 mm)
Outer diameter: 8.78 in (223 mm)
Voice coil: 2.5 in aluminum
Dimensions: 8.78 in outer diameter; mounting depth 5.55 in; cut-out 7.36 in
