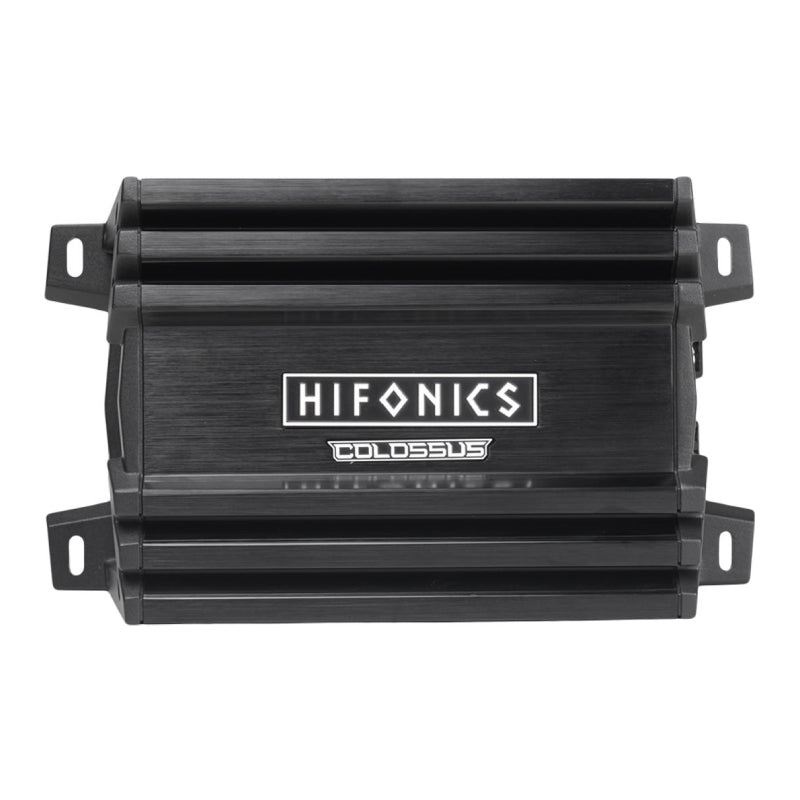

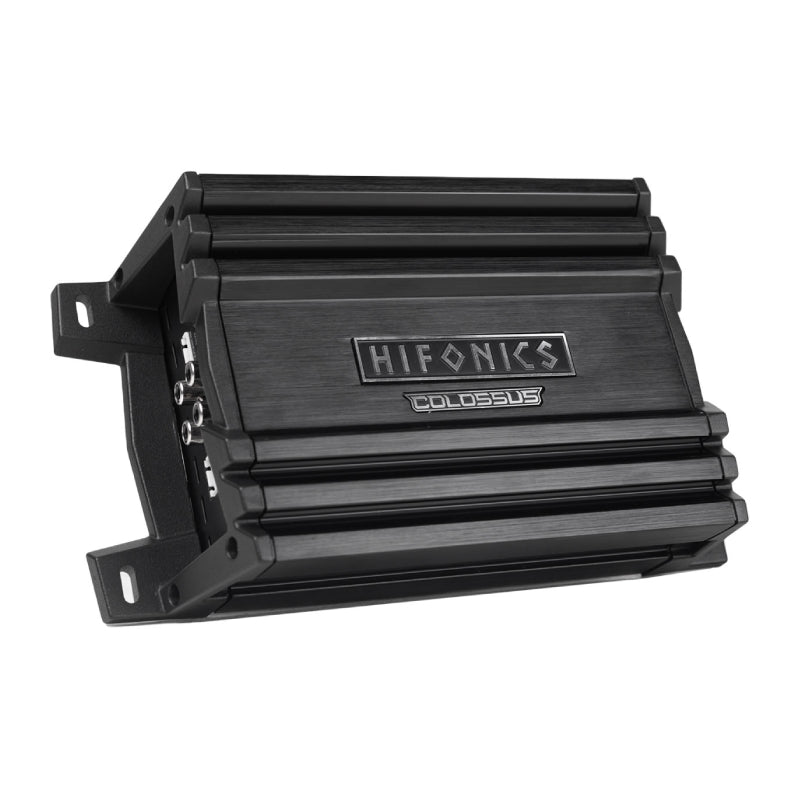

Hifonics HCM-400.4D Colossus Mini Series 4-Channel 400W Max Class-D Car Amplifier

Compact Colossus Mini Series 4-channel Class-D amplifier rated 400 watts max, designed for motorcycle, UTV/powersports and automotive installs. Uses a mass-loaded extruded aluminum heat sink for fanless cooling and supports stereo or bridged mono operation.

Features

• Compact chassis for motorcycle, UTV and automotive applications
• Mass-loaded extruded aluminum heat sink (fanless)

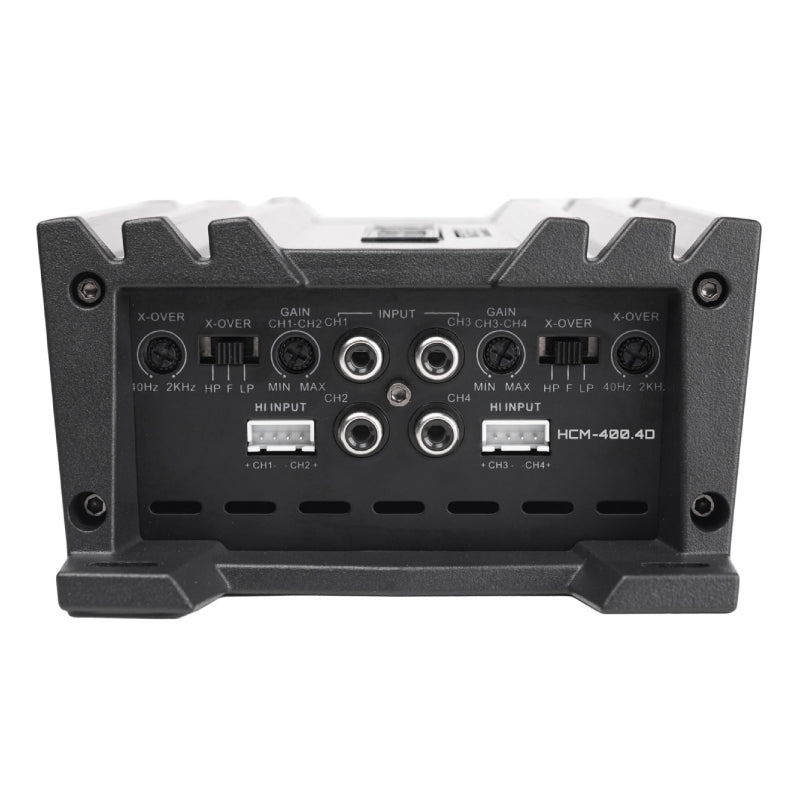

• High-end preamplifier circuit with nickel-plated RCA inputs
• Ultra-Fi MOSFET output devices
• Full Range Class-D chipset
• Variable 12dB/octave high-pass and low-pass crossovers
• Built-in bass control
• Delayed turn-on function
• Molded connection terminals and CNC-machined aluminum badges
• Triple protection: over/under voltage, short circuit, thermal

Specifications

• Max power: 400W
• Channels: 4
• Class: D
• Power @ 4 ohms: 4 x 50W
• Power @ 2 ohms: 4 x 100W
• Bridged @ 4 ohms: 2 x 200W
• Frequency response: 10Hz-25kHz
• THD: <0.5%
• S/N ratio: >85dB
• High-pass crossover: 15Hz-1kHz, 12dB/octave
• Low-pass crossover: 30Hz-2.5kHz, 12dB/octave
• Input voltage range: 0.2-5V
• Fusing: external 40A

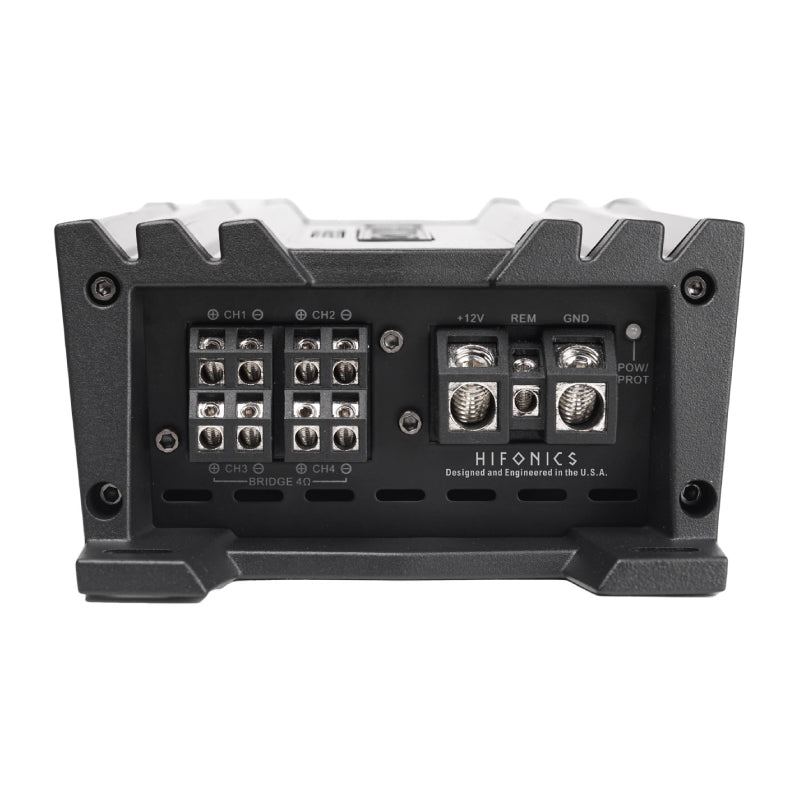

• Power terminal: 4 AWG; speaker terminals: 12 AWG
• Dimensions: 9.3" L x 5.28" W x 2.72" H
• Warranty: 2 years
