PAC AmpPRO AP4-TY14 Amplifier Integration Interface for Select 2022+ Toyota Vehicles with Premium (JBL) Amplified Systems

AmpPRO 4 plug-and-play interface that lets you add aftermarket amplifiers to select 2022+ Toyota vehicles with factory JBL amplified systems while retaining the factory radio, Bluetooth audio, navigation prompts and chimes. Provides front, rear and sub preamp outputs with adjustable audio settings.

Features

• Upgrade entire or partial sound system while retaining the original amplifier
• Plug-and-play installation (30, 28 and 10-pin connectors)
• Variable volume, fader, balance, bass, mid and treble settings
• Front, rear and sub preamp outputs (5 V RMS)
• Custom OE bass/mid/treble center-frequency selection
• Retains Bluetooth audio, navigation prompts and warning chimes
• Sub-level controller (bass knob) included
• Optional TOSLINK optical output (sold separately)

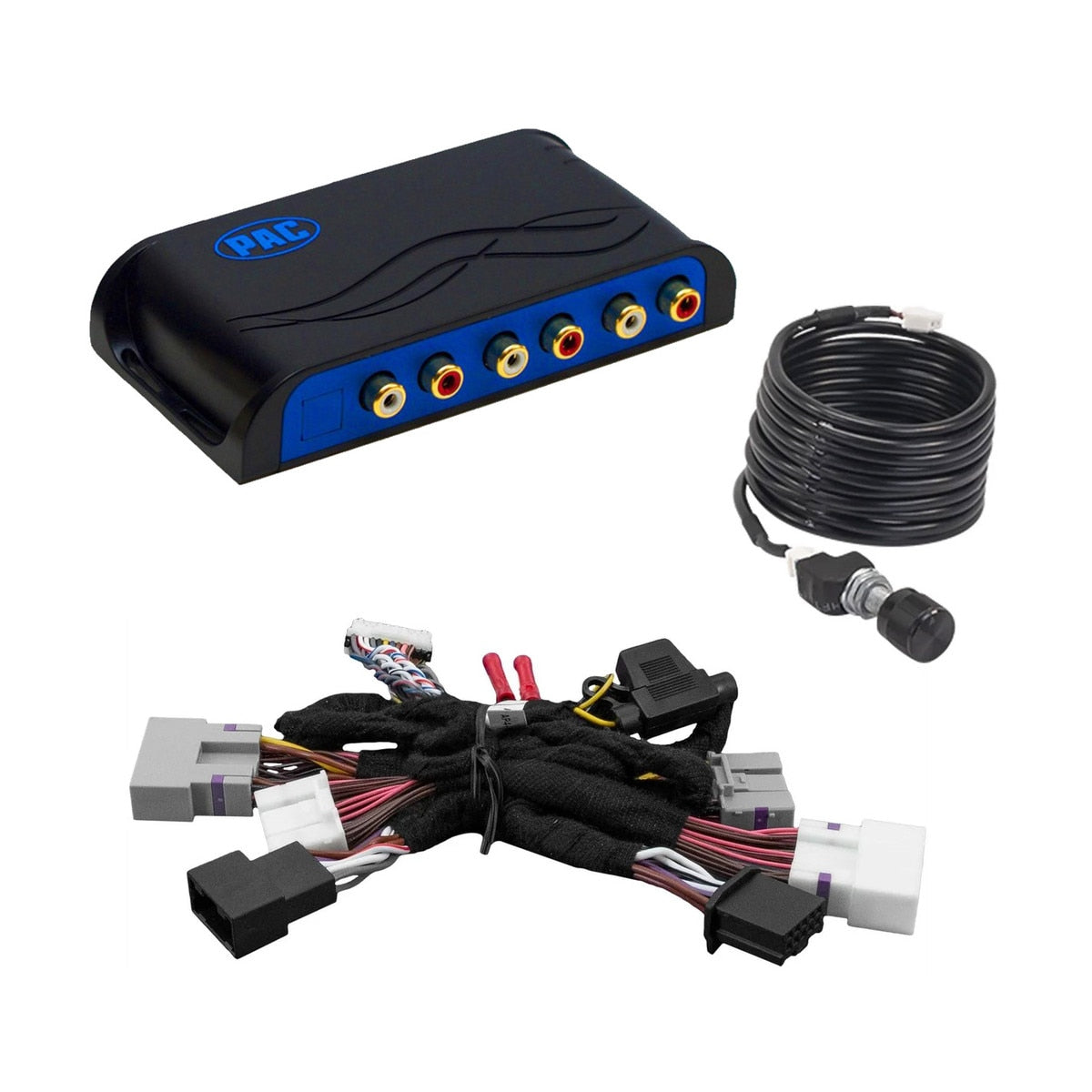

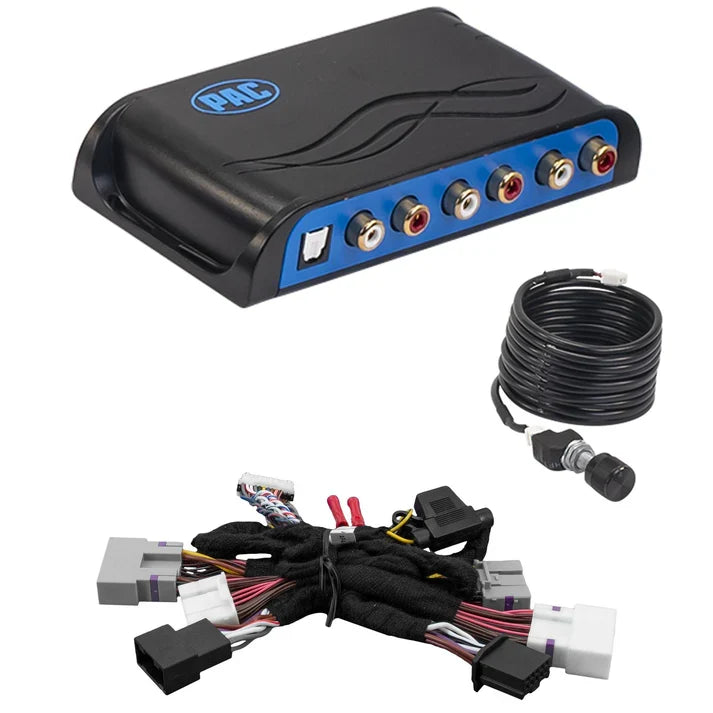

• In the box: AmpPRO module, harness, bass knob, knob harness, manual

Specifications

• Type: amplifier integration interface (AmpPRO 4)
• Preamp outputs: front, rear, sub - 5 V RMS
• Vehicle fit (PAC catalog): 2023 Corolla Hatchback, 2024 Highlander, 2024 Land Cruiser, 2024 Tacoma, 2022-2024 Tundra (factory JBL)
• Expanded fit per tdscaraudio.com: also 4Runner, Crown, Prius, Sequoia, 2022-2026 (verify with PAC fit guide)
• Package dimensions (Abt): 3 x 6 x 8 in
• Package weight (Abt): 1 lb
